820 Series Thermoplastic Slat Chain
820 Series Thermoplastic Slat Chain
PlastLink 820 series thermoplastic slat chain is designed for conveyor lines that need smooth product transfer, dependable running, and practical service performance in continuous production use. This chain series is supplied for conveyor applications that require steady motion, clean running, and dependable product handling in continuous operation.
PlastLink
820 Series
Thermoplastic Slat Chain Configuration
820 Series Thermoplastic Slat Chain is selected for conveyor lines that need stable chain travel, low-noise movement, and dependable product transfer. It supports practical line operation where cleanliness, long service life, and consistent conveying remain important.

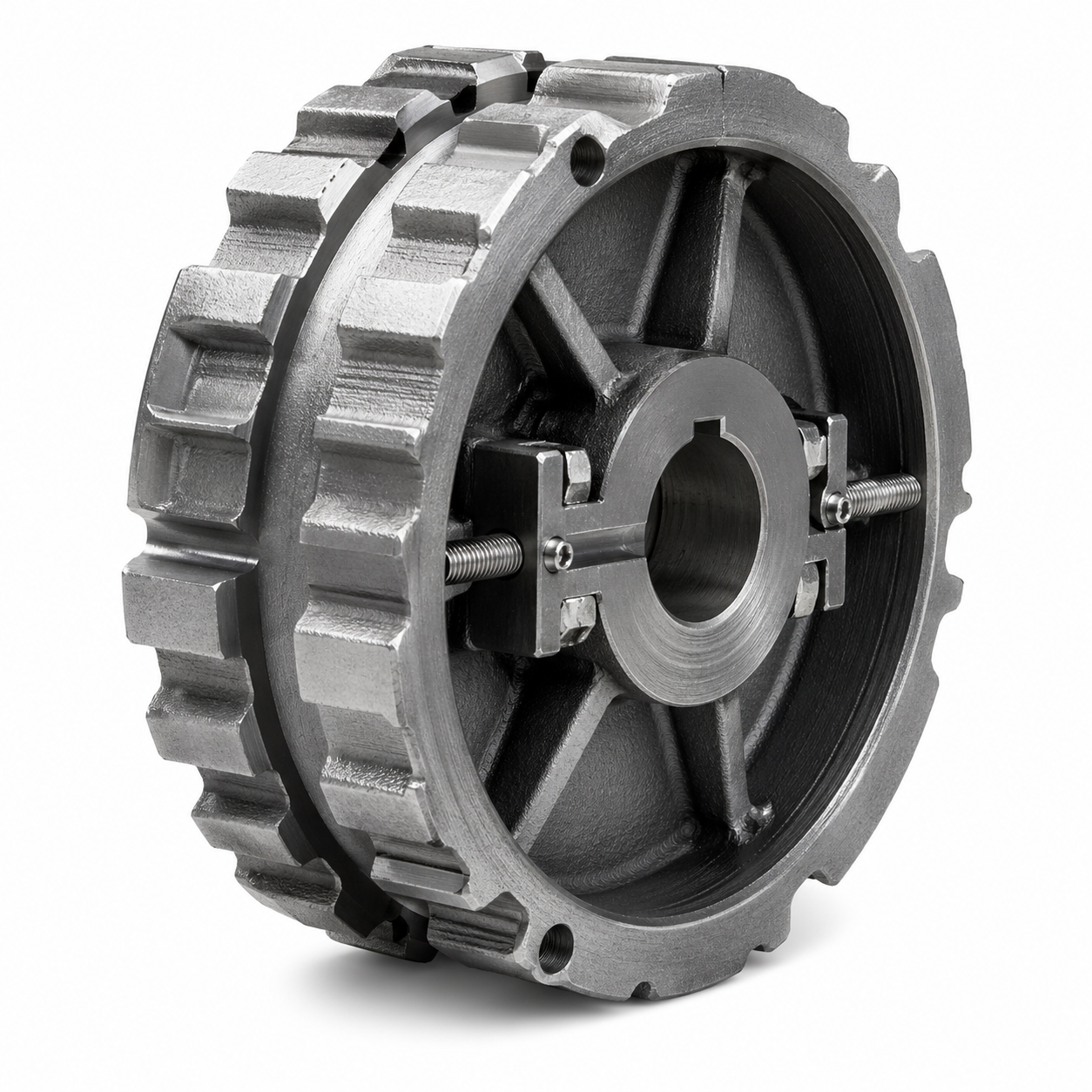

Socket Image
View 820 Series Socket
No. of Teeth: 17, 19, 21, 23, 25, 27, 29

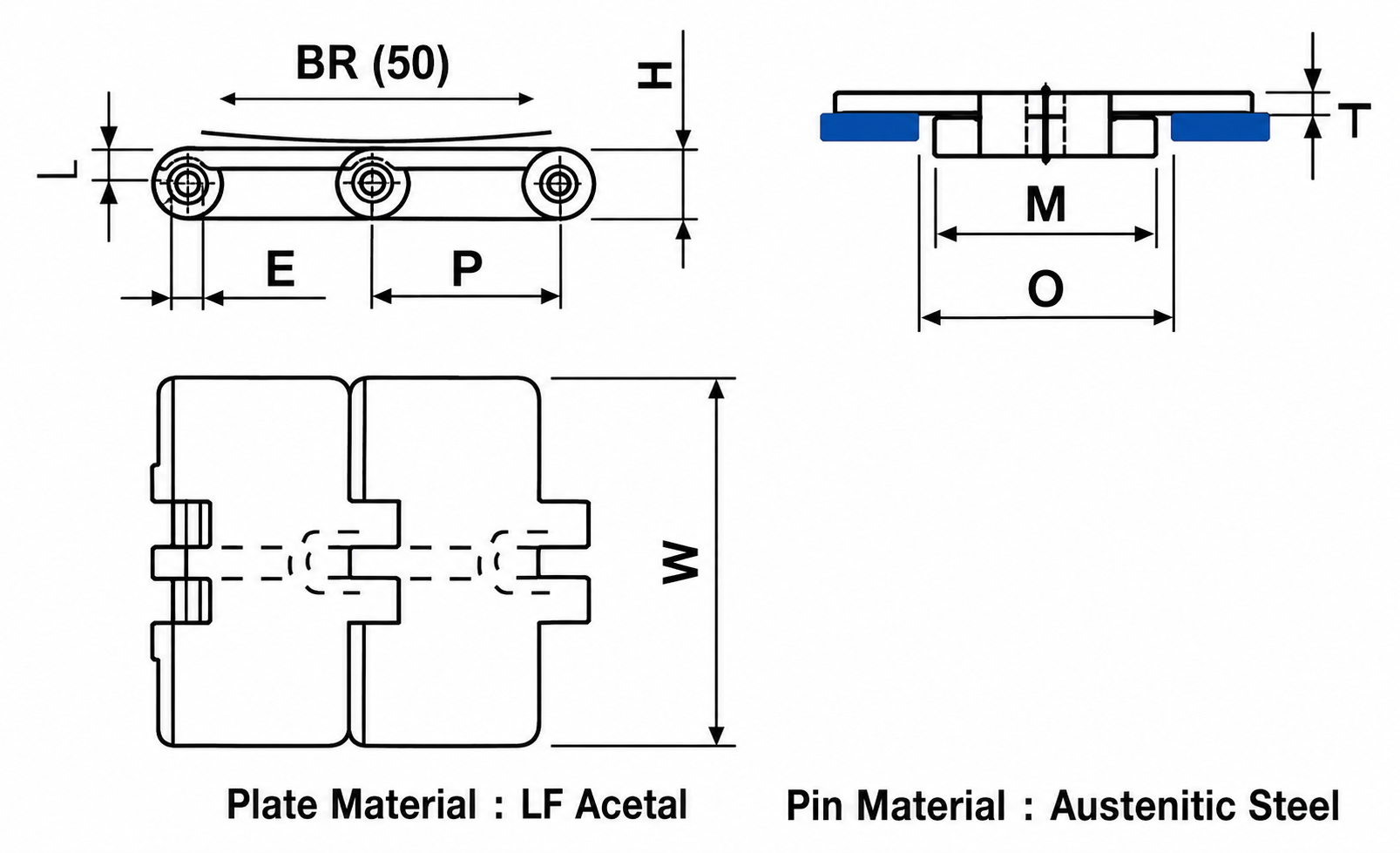

| Dimension | MM | Inch |
|---|---|---|
| P | 38.1 | 1.50 |
| M | 42.1 | 1.65 |
| L | 7.20 | 0.28 |
| H | 13.5 | 0.53 |
| E | 6.35 | 0.25 |
| T | 4.00 | 0.18 |
| O | 44.5 | 1.73 |
Standard length: 80 pitches (10 feet - 3.048 m)
| Part No. | Width (mm) |
Width (inch) |
Weight (kg/m) |
|---|---|---|---|
| 820 K250 | 63.5 | 2.50 | 0.73 |
| 820 K325 | 82.5 | 3.25 | 0.83 |
| 820 K330 | 83.8 | 3.30 | 0.85 |
| 820 K350 | 88.9 | 3.50 | 0.87 |
| 820 K400 | 101.6 | 4.00 | 0.95 |
| 820 K450 | 114.3 | 4.50 | 1.03 |
| 820 K600 | 152.4 | 6.00 | 1.25 |
| 820 K750 | 190.5 | 7.50 | 1.47 |
