882 TAB Series Thermoplastic Slat Chain
882 TAB Series Thermoplastic Slat Chain
PlastLink 882 TAB series thermoplastic slat chain is manufactured for conveyor applications that demand guided travel, stable product carrying, and dependable conveying performance across repeated cycles. This chain series is supplied for conveyor applications that require steady motion, clean running, and dependable product handling in continuous operation.
PlastLink
882 TAB Series
Thermoplastic Slat Chain Configuration
882 TAB Series Thermoplastic Slat Chain is selected for conveyor lines that need stable chain travel, low-noise movement, and dependable product transfer. It supports practical line operation where cleanliness, long service life, and consistent conveying remain important.

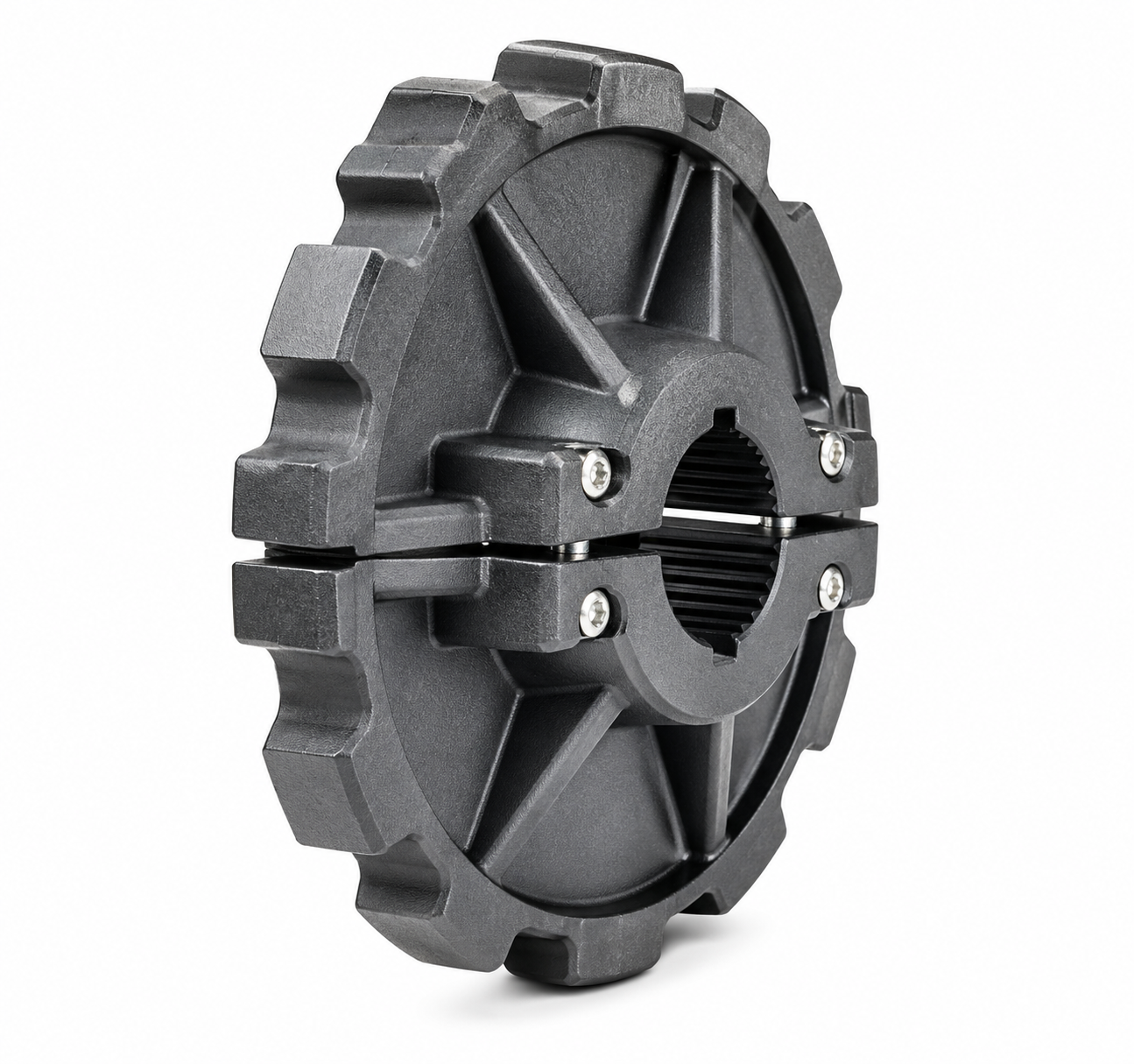

Socket Image
View 882 TAB Series Socket
No. of Teeth: 9, 10, 11, 12

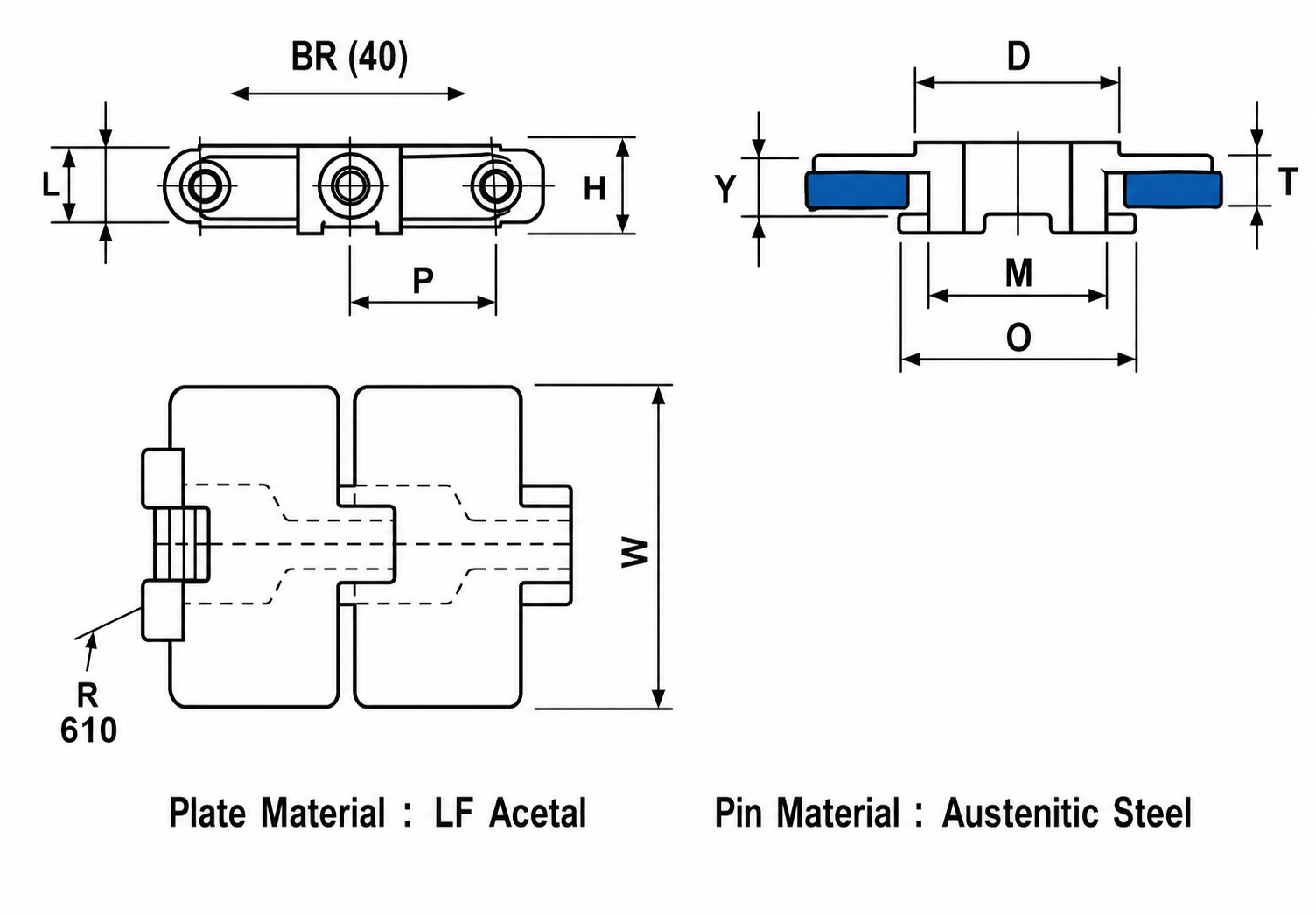

| Dimension | MM | Inch |
|---|---|---|
| P | 38.1 | 1.50 |
| O | 76.2 | 3.00 |
| L | 9.50 | 0.37 |
| H | 27.0 | 1.06 |
| E | 8.70 | 0.34 |
| T | 4.80 | 0.18 |
| V | 17.0 | 0.66 |
| M | 57.2 | 2.25 |
| D | 58 | 2.28 |
| Part No. | Width mm |
Width inch |
Weight kg/m |
|---|---|---|---|
| 882TAB K600 | 152.4 | 6.0 | 2.10 |
| 882TAB K750 | 190.5 | 7.5 | 2.47 |
| 882TAB K1000 | 254.0 | 10 | 2.87 |
| 882TAB K1200 | 304.8 | 12 | 3.41 |
Standard length: 80 pitches (10 feet - 3.048 m)
