880M Series Thermoplastic Slat Chain
880M Series Thermoplastic Slat Chain
PlastLink 880M series thermoplastic slat chain is selected for conveyor arrangements that require dependable running through guided paths with stable product handling and continuous movement support. This chain series is supplied for conveyor applications that require steady motion, clean running, and dependable product handling in continuous operation.
PlastLink
880M Series
Thermoplastic Slat Chain Configuration
880M Series Thermoplastic Slat Chain is selected for conveyor lines that need stable chain travel, low-noise movement, and dependable product transfer. It supports practical line operation where cleanliness, long service life, and consistent conveying remain important.

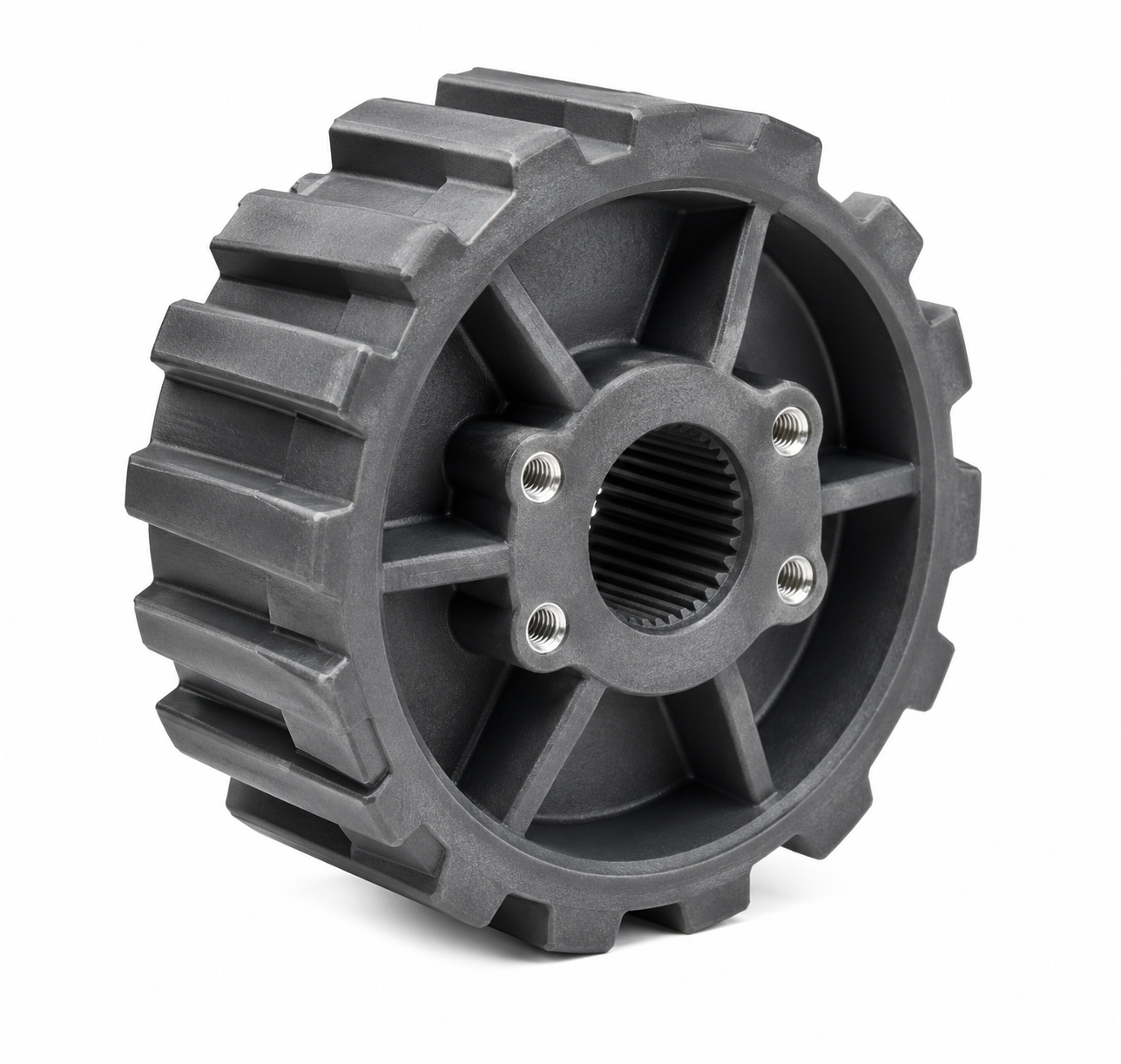

Socket Image
View 880M Series Socket
No. of Teeth: 9, 10, 11, 12

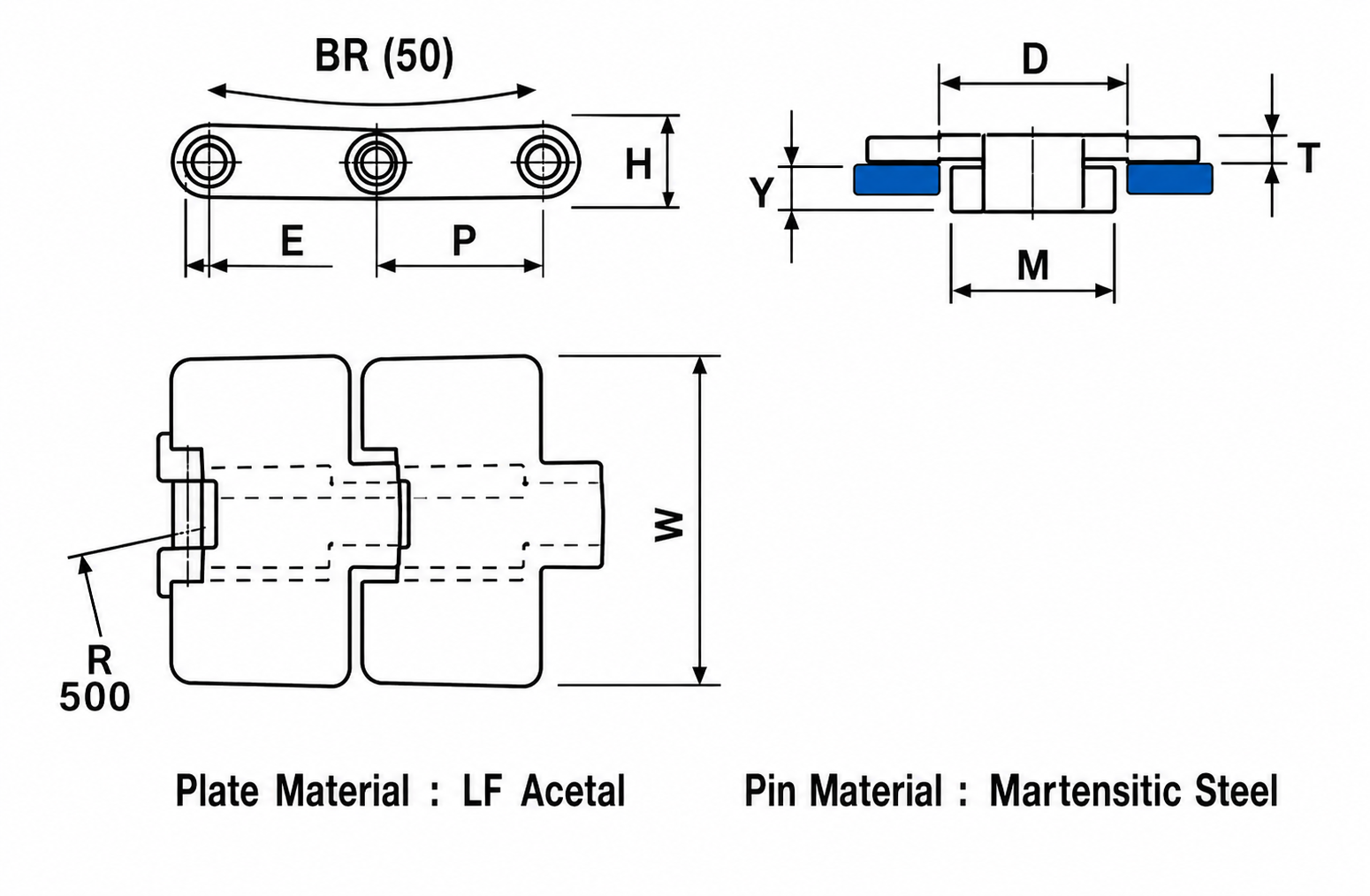

| Dimension | MM | Inch |
|---|---|---|
| P | 38.1 | 1.50 |
| M | 42.1 | 1.65 |
| L | 11.0 | 0.43 |
| H | 15.0 | 0.59 |
| E | 7.10 | 0.28 |
| T | 4.00 | 0.15 |
| O | 44.0 | 1.73 |
| Part No. | Width (mm) |
Width (inch) |
Weight (kg/m) |
|---|---|---|---|
| 880 M K325 | 82.5 | 3.25 | 1.03 |
| 880 M K450 | 114.3 | 4.50 | 1.16 |
Standard length: 80 pitches (10 feet - 3.048 m)
