880 TAB Series Thermoplastic Slat Chain
880 TAB Series Thermoplastic Slat Chain
PlastLink 880 TAB series thermoplastic slat chain is suited for side-flexing and guided conveyor applications where accurate movement, secure handling, and reliable transfer performance are required. This chain series is supplied for conveyor applications that require steady motion, clean running, and dependable product handling in continuous operation.
PlastLink
880 TAB Series
Thermoplastic Slat Chain Configuration
880 TAB Series Thermoplastic Slat Chain is selected for conveyor lines that need stable chain travel, low-noise movement, and dependable product transfer. It supports practical line operation where cleanliness, long service life, and consistent conveying remain important.

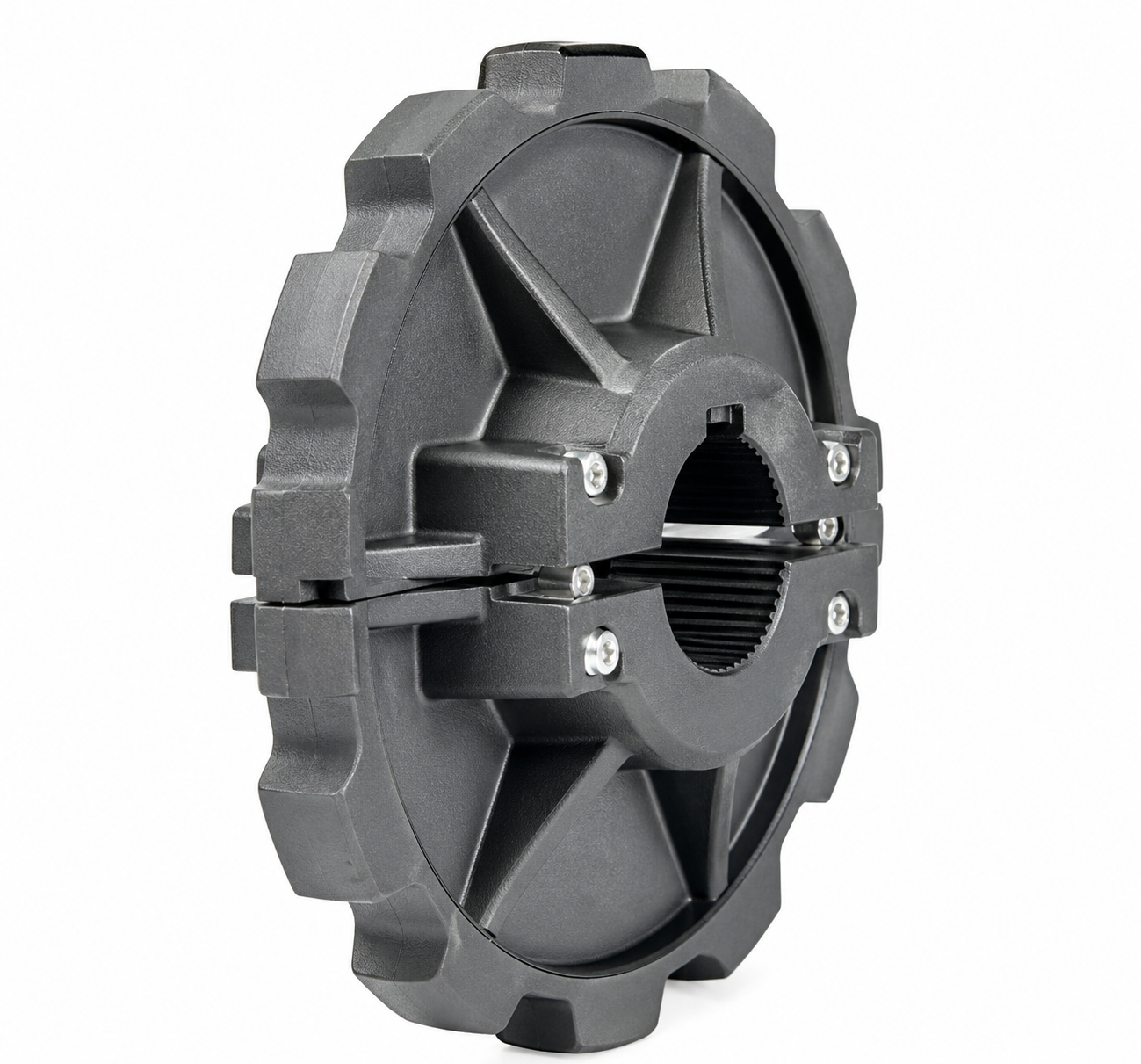

Socket Image
View 880 TAB Series Socket
No. of Teeth: 9, 10, 11, 12

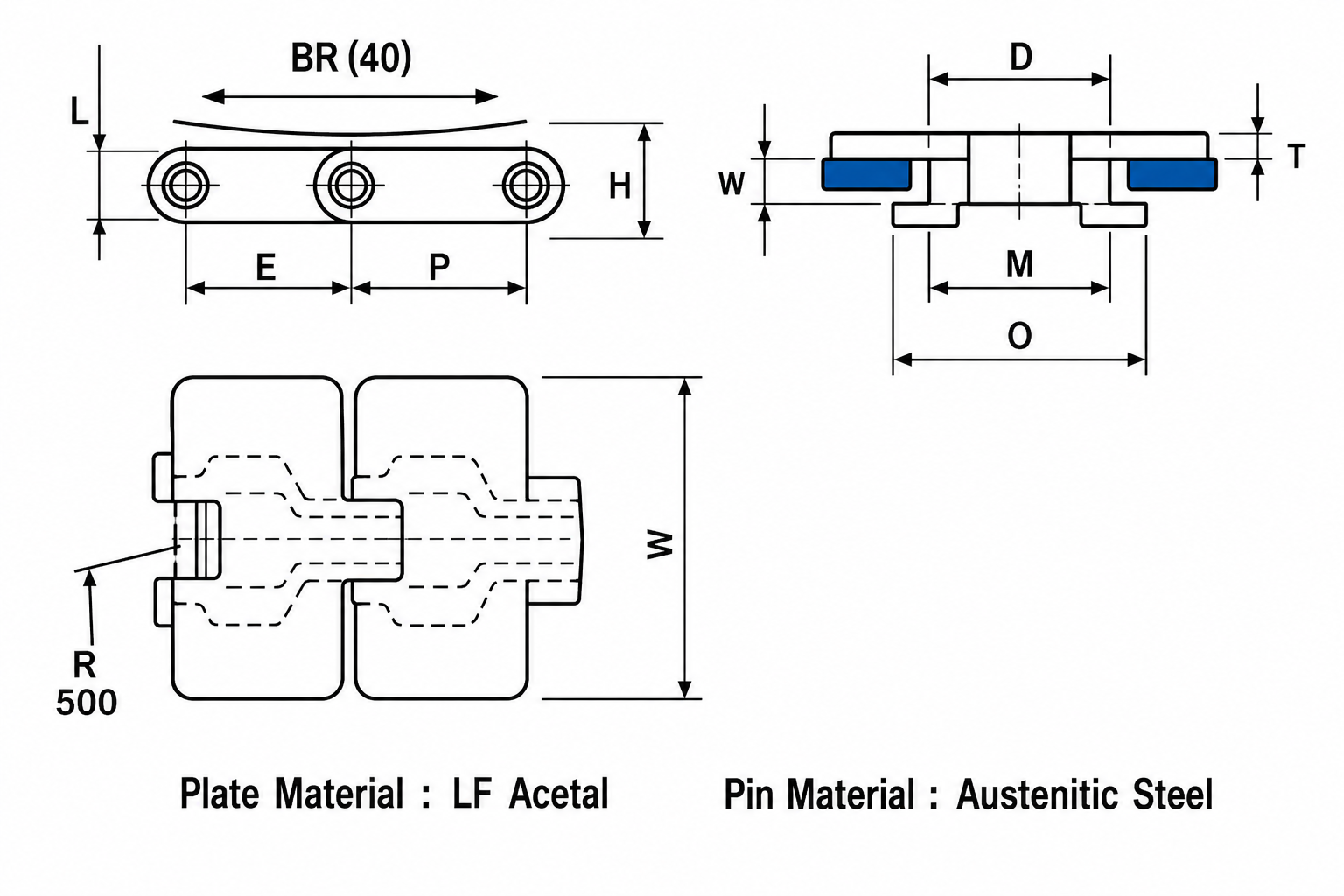

| Dimension | MM | Inch |
|---|---|---|
| P | 38.1 | 1.50 |
| O | 61.1 | 2.40 |
| L | 7.60 | 0.30 |
| H | 20.0 | 0.78 |
| E | 7.10 | 0.28 |
| T | 4.00 | 0.15 |
| V | 11.50 | 0.45 |
| S | 16.0 | 0.63 |
| M | 42.9 | 1.68 |
| D | 45.0 | 1.77 |
| Part No. | Width (mm) |
Width (inch) |
Weight (kg/m) |
|---|---|---|---|
| 880TAB K325 | 82.5 | 3.25 | 0.64 |
| 880TAB K450 | 114.3 | 4.50 | 1.08 |
Standard length: 80 pitches (10 feet - 3.048 m)
