821 Series Thermoplastic Slat Chain
821 Series Thermoplastic Slat Chain
PlastLink 821 series thermoplastic slat chain supports steady conveying where clean movement, operational stability, and low-maintenance chain performance are important for day-to-day handling. This chain series is supplied for conveyor applications that require steady motion, clean running, and dependable product handling in continuous operation.
PlastLink
821 Series
Thermoplastic Slat Chain Configuration
821 Series Thermoplastic Slat Chain is selected for conveyor lines that need stable chain travel, low-noise movement, and dependable product transfer. It supports practical line operation where cleanliness, long service life, and consistent conveying remain important.

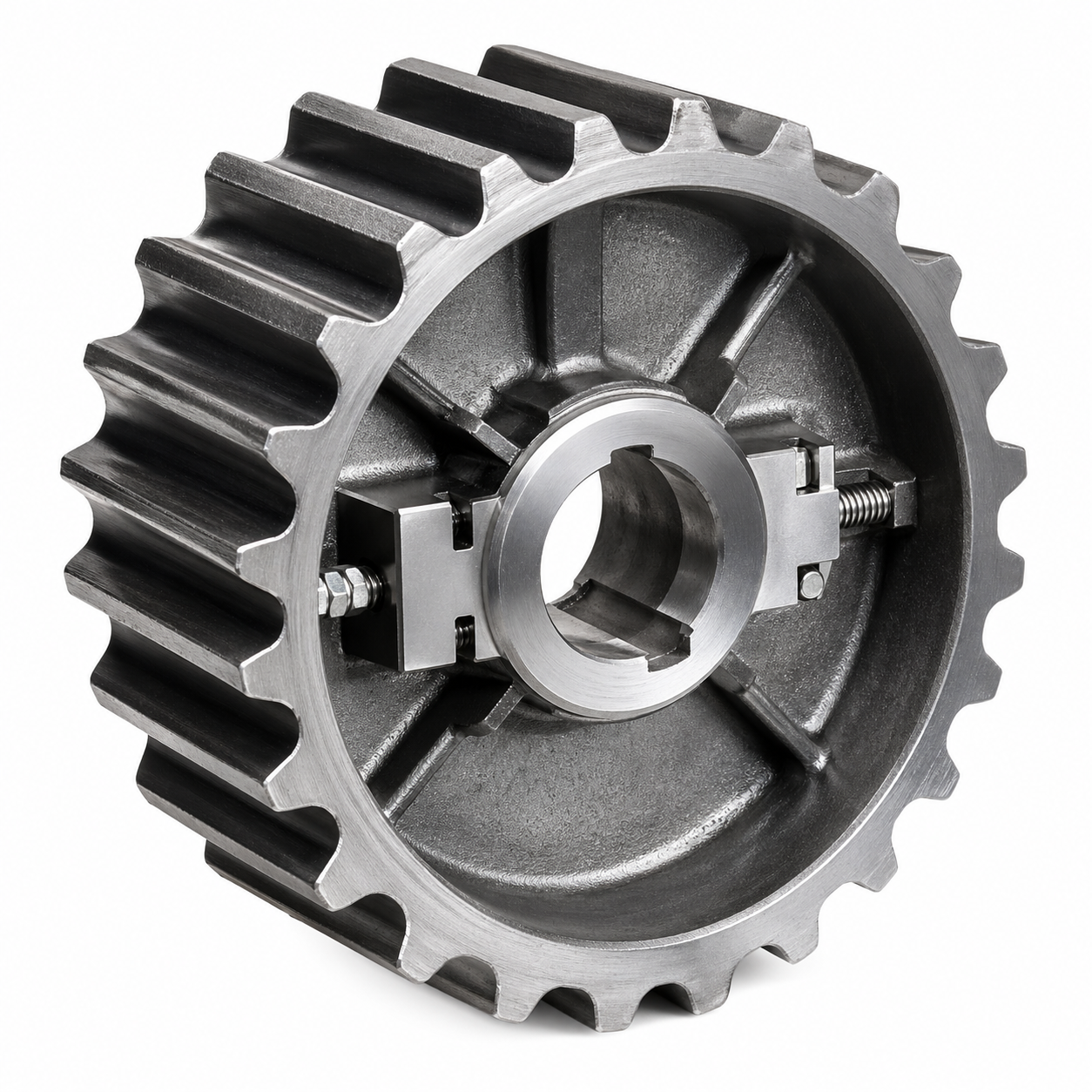

Socket Image
View 821 Series Socket
No. of Teeth: 19, 21, 23, 25

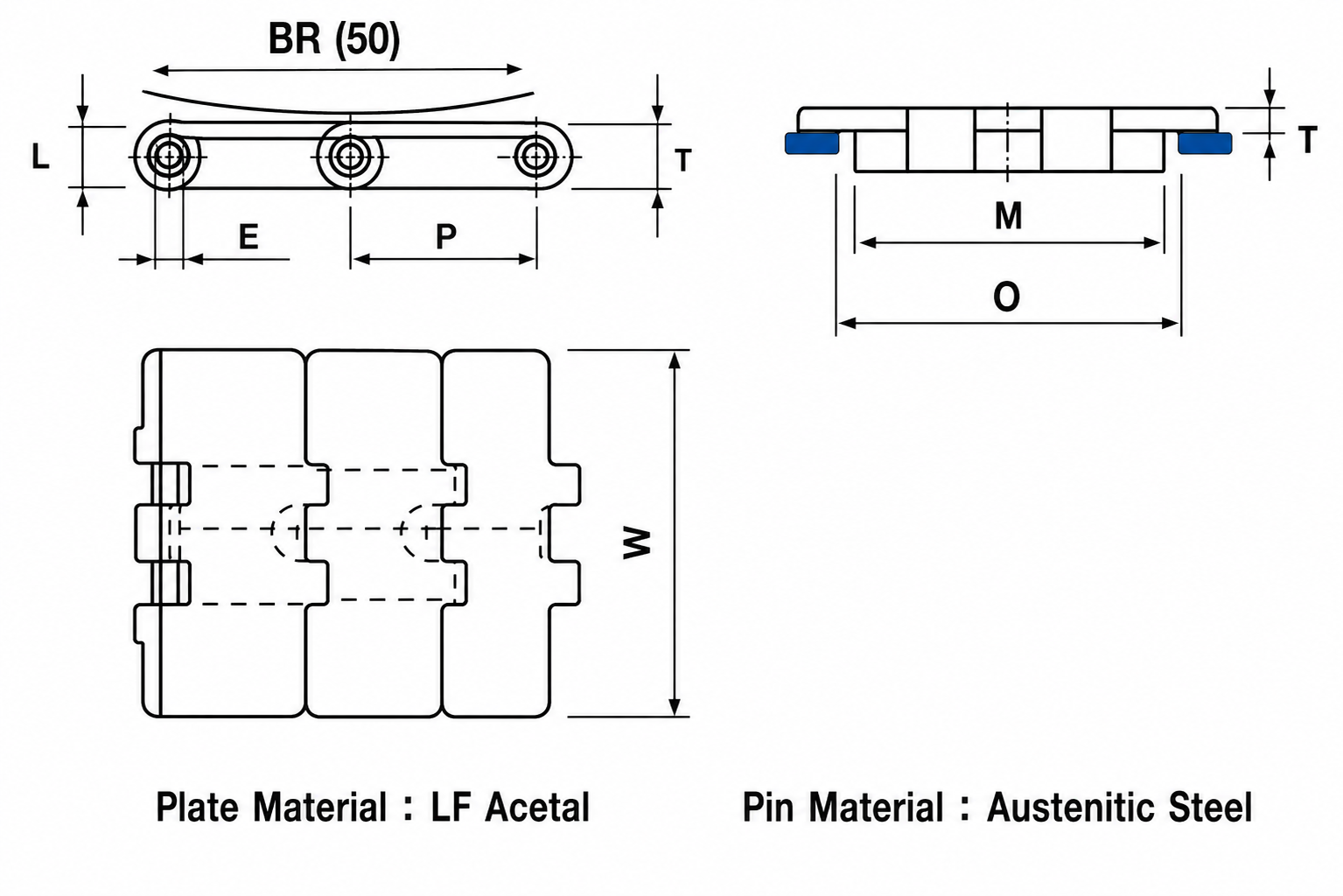

| Dimension | MM | Inch |
|---|---|---|
| P | 38.1 | 1.50 |
| M | 136.5 | 5.37 |
| L | 7.90 | 0.31 |
| H | 14.3 | 0.56 |
| E | 7.90 | 0.31 |
| T | 4.80 | 0.18 |
| O | 140 | 5.51 |
| Part No. | Width (mm) |
Width (inch) |
Weight (kg/m) |
|---|---|---|---|
| 821 K750 | 190.5 | 7.5 | 2.50 |
| 821 K1000 | 254.0 | 10 | 2.95 |
| 821 K1200 | 304.8 | 12 | 3.25 |
Standard length: 80 pitches (10 feet - 3.048 m)
Compare other thermoplastic slat chain series
Open each series to review the available chain pattern and select a suitable option for your conveyor requirement.
